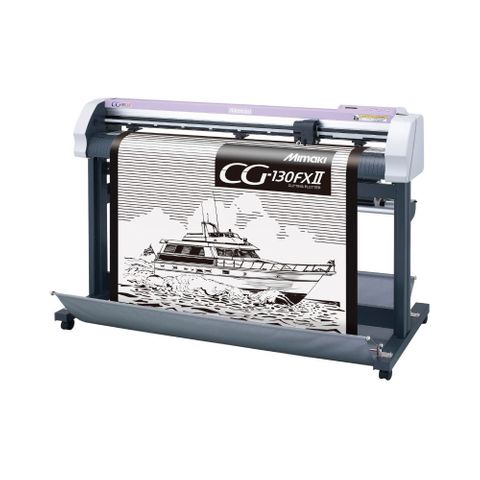

MIMAKI CG-FXII PLUS SERIES VINYL CUTTER

MIMAKI CG-FXII PLUS SERIES VINYL CUTTER
Add to favourites

Features:

• Available machine widths: 1600mm, 1300mm and 760mm
• Continuous crop mark detection plus Mimaki's new ID Cut
• Long accurate tracking
• FineCut – Plug-in for print & cut solutions

New function

A new function called "ID Cut" enables continuous cutting operations to be performed automatically.
The "ID Cut function" automatically scans printed-out registration marks with IDs, then reads and cuts the cutting data. While operators could scan registration marks and specified cut data for each cutting job in the past, using the "ID Cut" function makes it possible to perform unmanned and continuous cutting operations.  Operators can proceed with other operations while the machine is performing the cutting operation.

High speed continuous crop mark detection

An optical sensor enables automatic consecutive detection of crop marks throughout the nested image which the Inkjet printer prints, in combination with the automatic adjustment function to obtain precise contour cutting. By continuously detecting a maximum of 4 points, nested images in both X axis and Y axis can be cut aligning each image automatically.


Accurate media feeding ensures precise contour cutting over longer-length prints

Necessary media length is fed in advance to reduce tension during cutting. This function increases the precision of long-length print media cutting.


“HALF CUT”mechanism, a proprietary technology of Mimaki

With the original half cut function, the backing sheet can be cut leaving small half cut connecting points, which can be easily detached when necessary. Various media without backing sheets can be also cut.


Other functions

• Selectable clamp pressure with high and low setting ensures accurate cutting of various media.
• Selectable three jog speeds ensure proper and easy positioning of the head to the point.
• Over-cut function makes the starting and ending points overlapped, which eliminates uncut portion of the media.
• Media can be loaded from back or front.
• Up to 6 roll media can be set at a time(1 set standard).
• Plug-in cutting software for CorelDRAW and Illustrator is included.
• A special adaptor to use commercially available pens and USB interface are included.

Code Product Name Size
CG-130FXIIPLUS MIMAKI CG-FXII PLUS SERIES VINYL CUTTER 1300mm Enquiry Only
CG-160FXIIPLUS MIMAKI CG-FXII PLUS SERIES VINYL CUTTER 1600mm Enquiry Only
CG-75FXIIPLUS MIMAKI CG-FXII PLUS SERIES VINYL CUTTER 760mm Enquiry Only
Make an Enquiry
